Shapes Demo

Eclipse Cyclone DDS Insight includes a shapes demo application that visualizes various shapes being published over DDS. This demo is a well known demo application for DDS implementations.

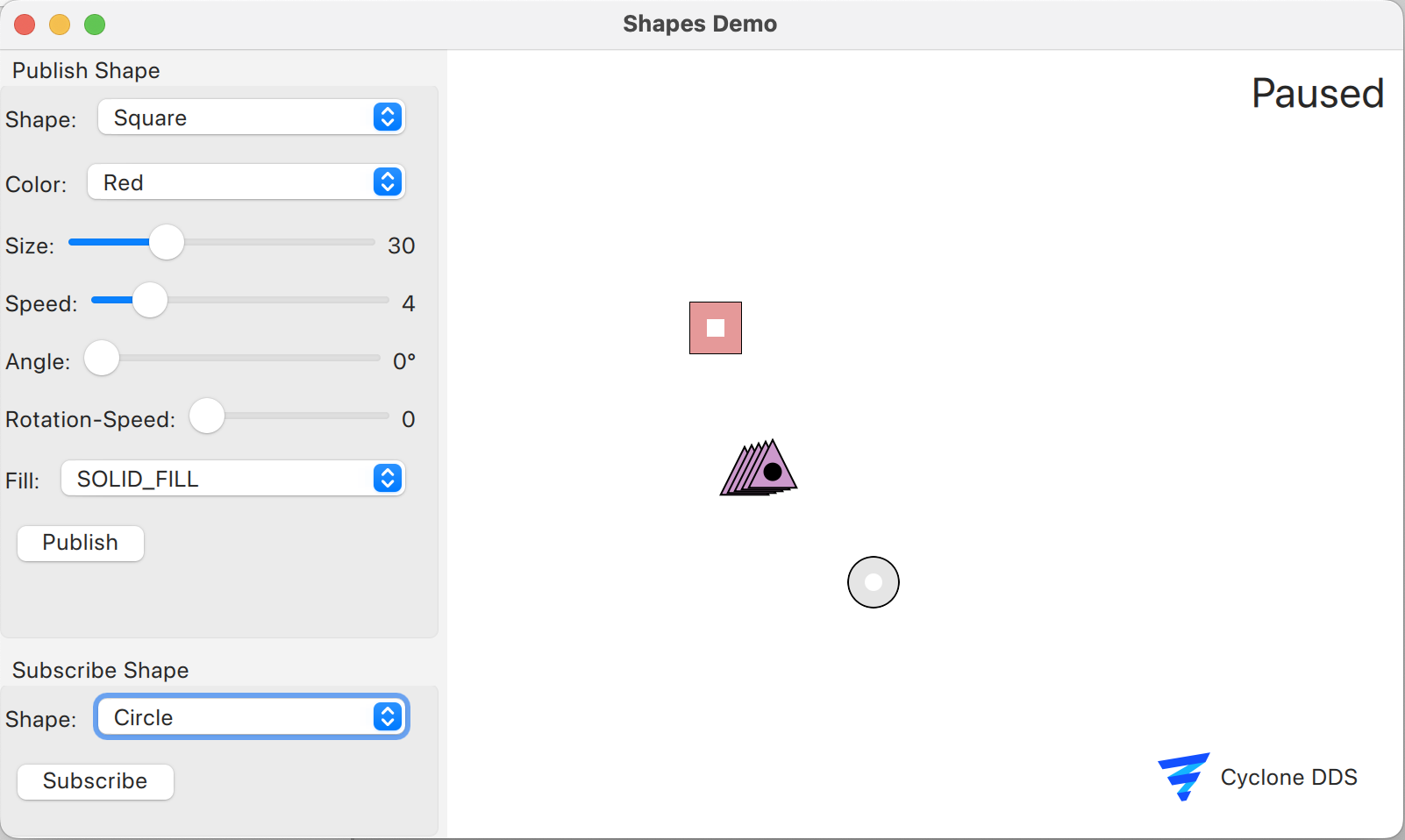

  1. Go to “Menu” -> “Shapes Demo” to start the shapes demo window

  2. Publish or subscribe to shapes using the buttons on the left

../_images/shapes_demo.png

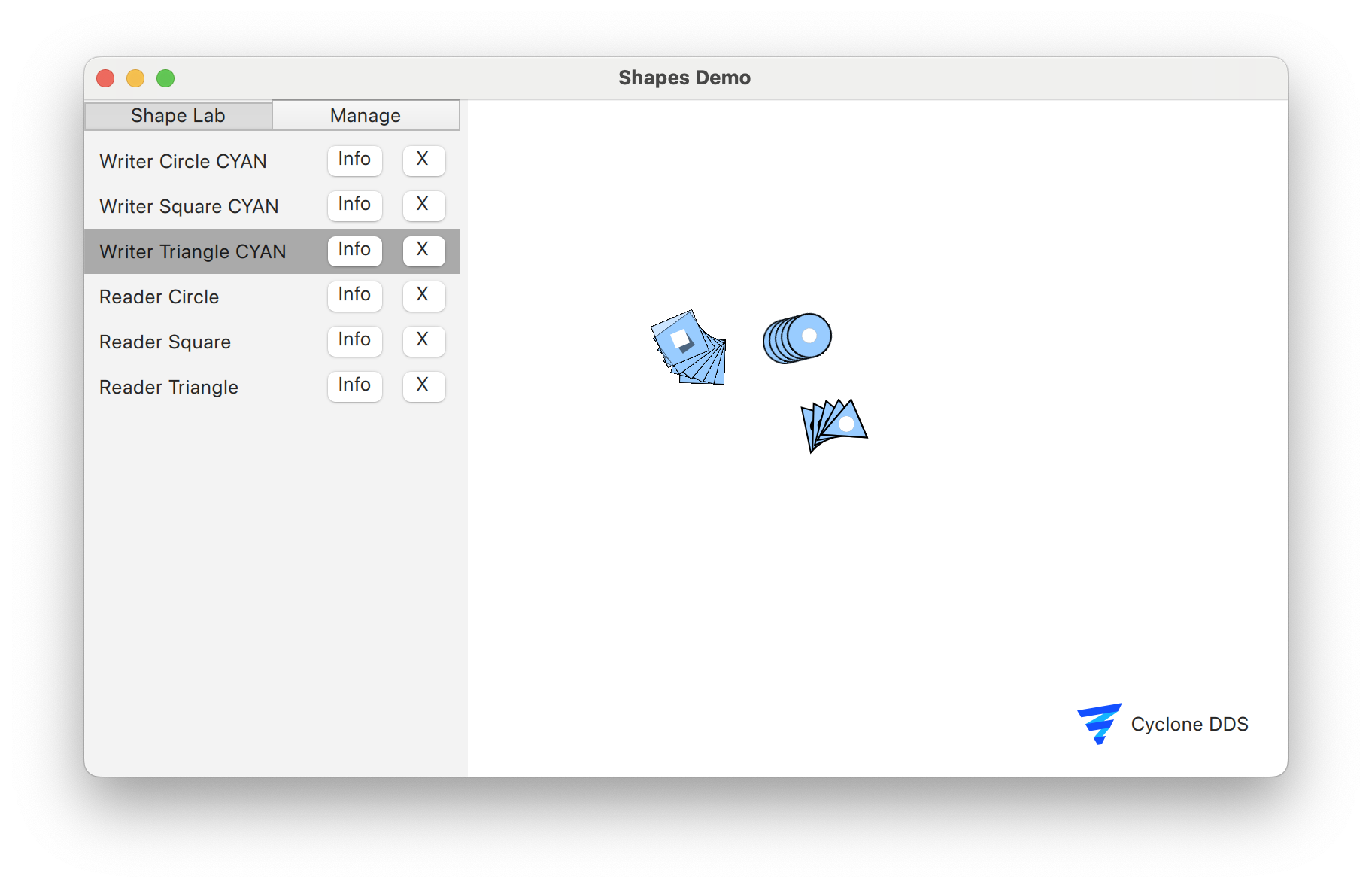

  1. Manage the shapes using the “Manage Shapes” button

../_images/shapes_demo_manage.png
